DACS Acoustic Kit

£2,252.07 – £3,189.13

DACS Acoustics Kits perform effectively. Calculated to make mixes reliable and translate well, they’ll speed up your processes and let you work with confidence.  The three different kits are based on common room sizes. If your room is different, please call or write and we’ll advise.

DACS Acoustics Absorbers are solidly built with a tough silk lacquer finish. Flush mounted and secure, they will complement your décor and maintain their good looks.

Mounting them is easy. Work out where they are going, select one of two included split battens (for horizontal or vertical mounting), use the included fixings and template to mount them on the wall, then hang the absorber.

Simply choose the room size closest to your own room, then select which colour cloth and wood finish you’d prefer from the options below.

SKU: N/A Category:

Description

Acoustic Kit Panel Treaments

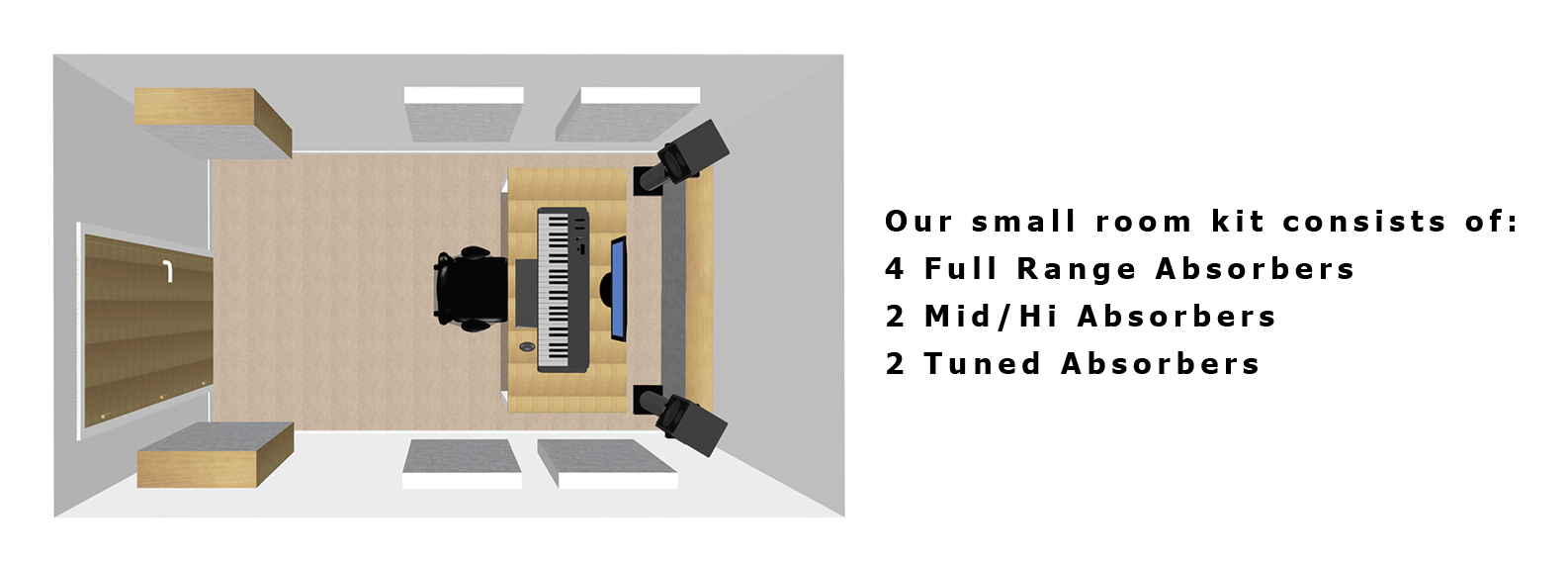

Small Room (Calculated for size 2m x 3m)

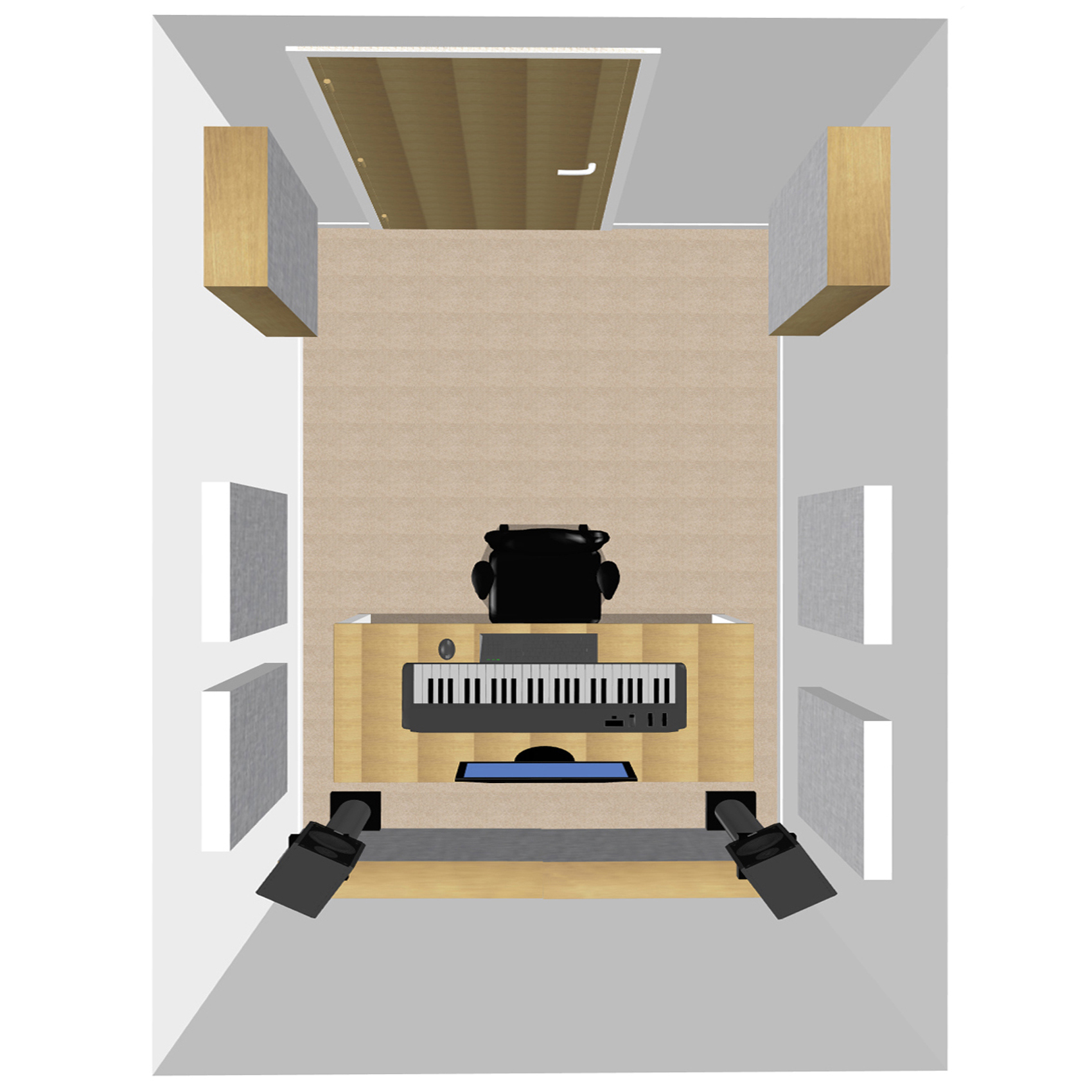

We’d suggest the most effective way to treat a room with these dimensiions (or similar) would be to place two of the full range absorbers to the front of the room horizontally on the floor. The remaining full range absorbers should ideally be placed to the rear wall vertically, if a door is obstructing the placement, you could fix to the side walls close to the rear wall as illustrated.

The two tuned absorbers should be placed on the side walls centre adjacent to the speaker monitors.

The final two Mid/Hi Absorbers to be placed on the side walls in the centre listening position.

Room performance

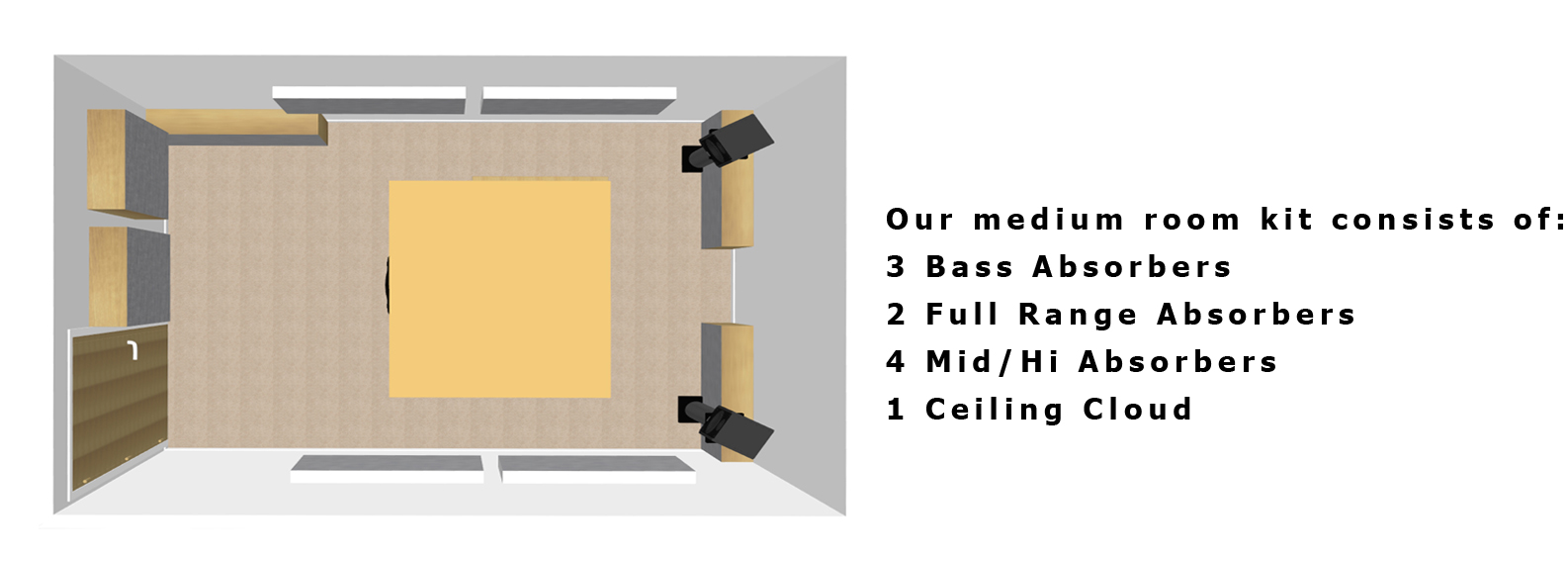

Medium Room (Calculated for size 2.6m x 3.5m)

We’ve calculated the most effective way to treat a medium sized room would be to place two of the full range absorbers to the rear of the room vertically to the wall. Situate two bass absorbers on the floor at the front wall and the remaining ideally be placed to the rear wall horizontally as illustrated.

The four mid/hf absorbers should be placed on the side walls centre adjacent to the speaker monitors and listening position.

The ceiling cloud should be hung from the ceiling using appropriate fixings over the centre of the listening position.

Room performance

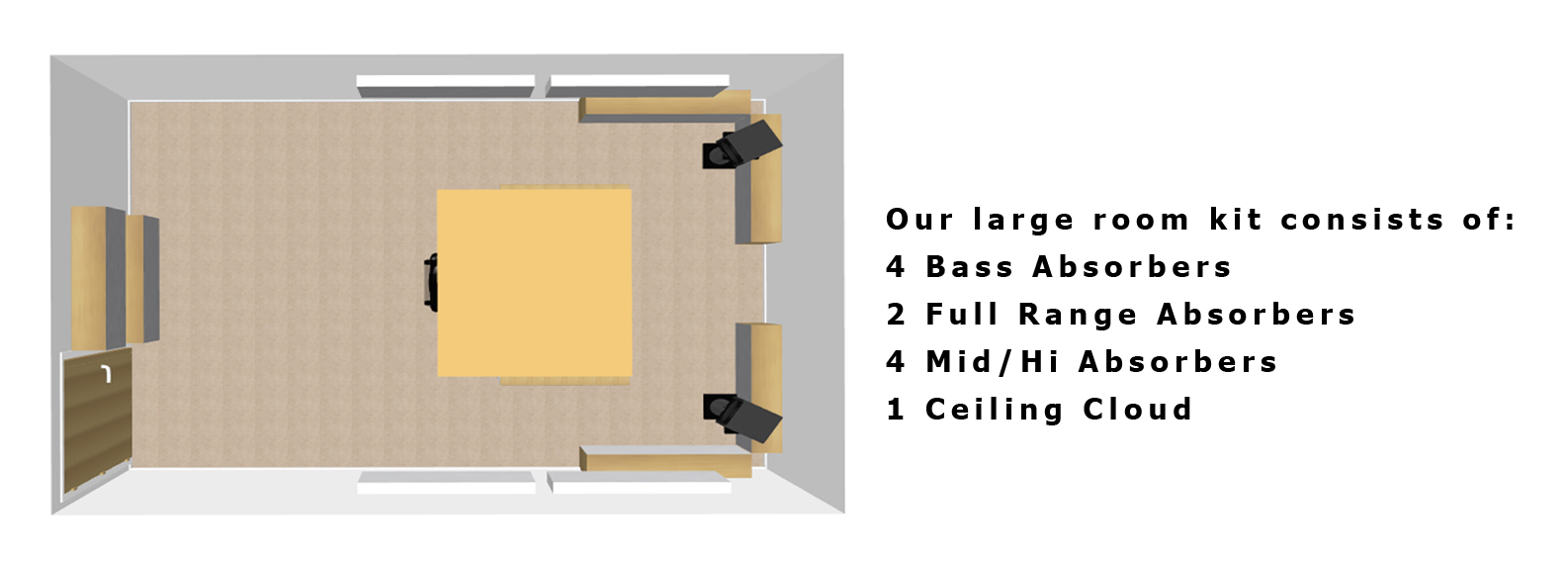

Large Room (Calculated for room size 3m x 4m)

For a larger sized room it would be best to place the four bass absorbers horizontally in the corners of the front wall and place the two full range absorbers on the rear wall horizontally as illustrated.

The four mid/hf absorbers should be placed on the side walls centre adjacent to the speaker monitors and listening position.

The ceiling cloud should be hung from the ceiling using appropriate fixings over the centre of the listening position.

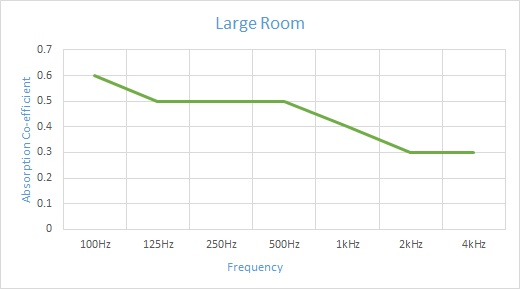

Room performance
